Rear Suspension / CFMOTO 500

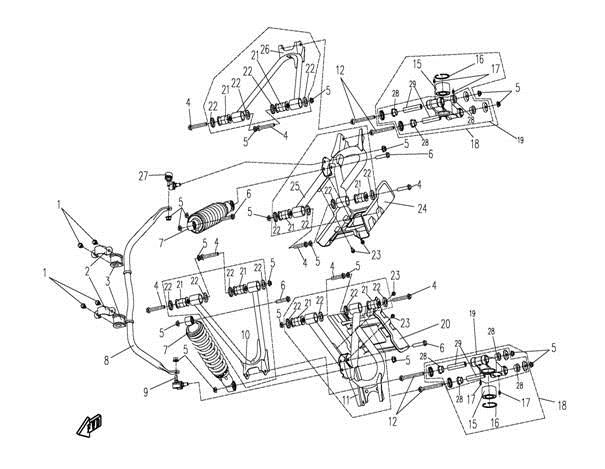

Rear suspension diagram for CFMOTO 500 (2011–2016) includes all essential components of the rear damping and stability system. The diagram shows shock absorbers, springs, control arms, bushings, mounts, fasteners, bolts, and related parts that ensure stability, comfort, and proper handling across different terrains.

IMPORTANT! All parts in the image are labeled with numbers.
