Oil Pump / CFMOTO 500

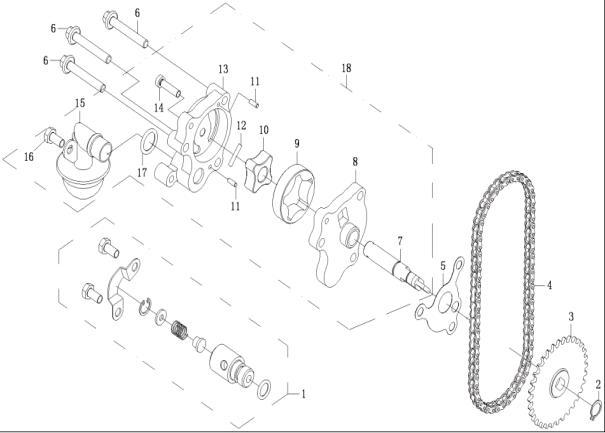

Oil pump diagram for CFMOTO 500 (2011–2016) includes all essential components of the engine lubrication system. The diagram shows oil pump, gears, housing, hoses, connectors, seals, fasteners, bolts, and related parts that ensure proper oil circulation and lubrication of internal engine components.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
