Hydraulic Brake System / CFMOTO 500

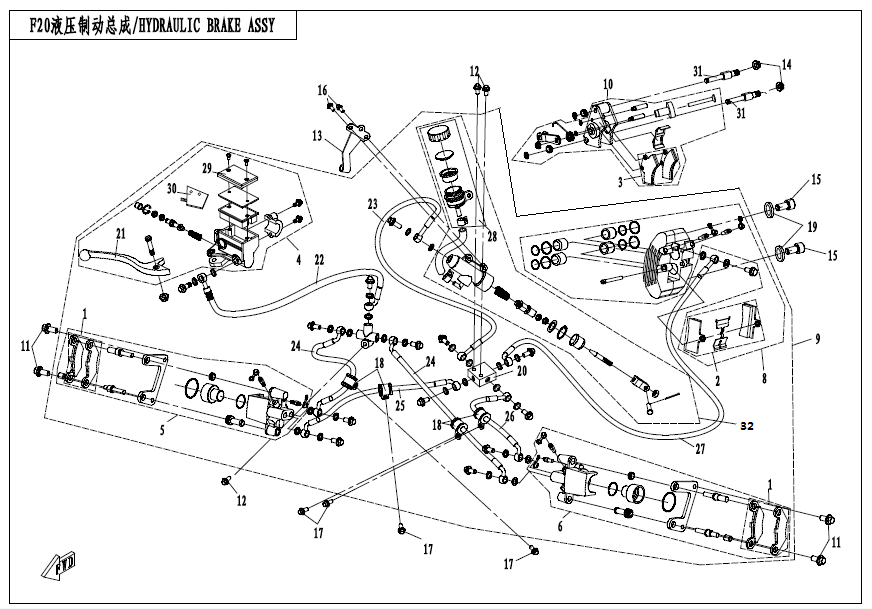

Hydraulic brake system diagram for CFMOTO 500 (2011–2016) includes all essential components for effective braking. The diagram shows brake calipers, discs, brake lines, master cylinder, fluid reservoir, mounts, fasteners, bolts, and related parts that ensure safe, precise, and reliable braking performance.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
