Front Turn Signals / CFMOTO 500

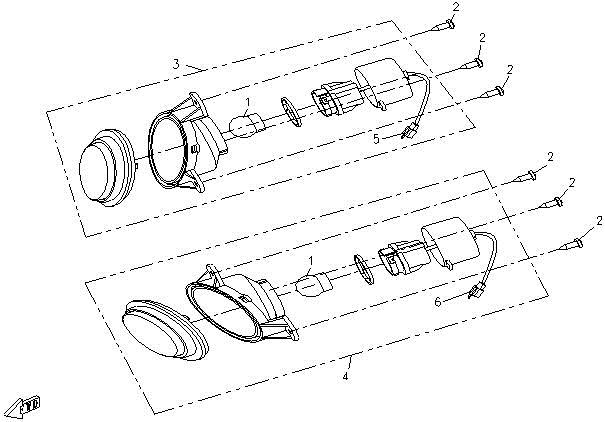

Front turn signals diagram for CFMOTO 500 (2011–2016) includes all essential components of the signaling system. The diagram shows turn lights, bulbs, housings, mounts, wiring, connectors, and related parts that ensure clear signaling and safe road visibility.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
