Cylinder Head Cover / CFMOTO 500

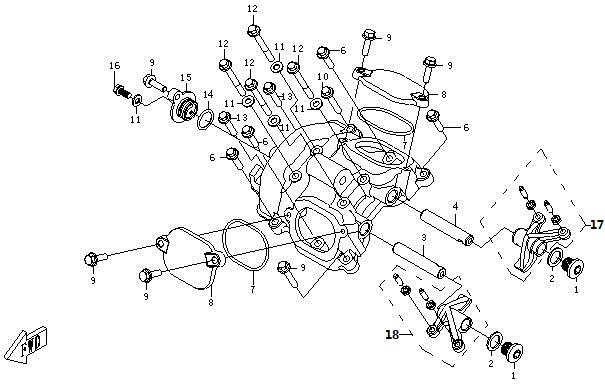

Cylinder head cover diagram for CFMOTO 500 (2011–2016) includes all essential components of the upper engine cover. The diagram shows the cover, seals, fasteners, bolts, and related parts that protect the valve train and ensure proper engine sealing.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
