CVT System / CFMOTO 500

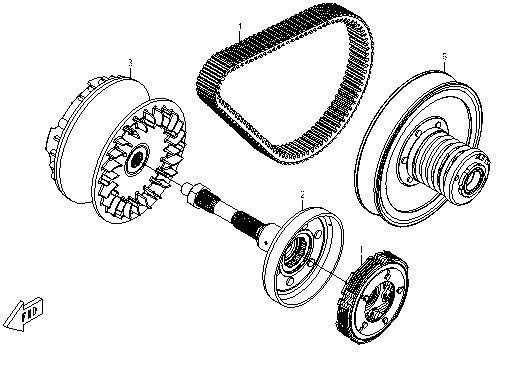

CVT system diagram for CFMOTO 500 (2011–2016) includes all essential components of the continuously variable transmission. The diagram shows variator, clutch, belt, rollers, springs, mounts, fasteners, bolts, and related parts that ensure smooth power transfer and optimal vehicle performance.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
