Crankcase Assembly / CFMOTO 500

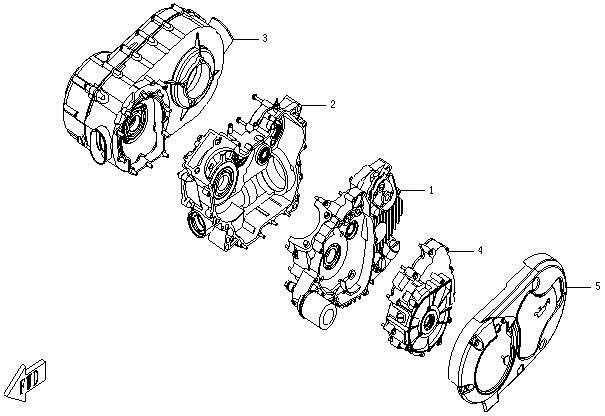

Crankcase assembly diagram for CFMOTO 500 (2011–2016) includes all essential components of the lower engine block. The diagram shows engine housing, covers, bearings, seals, bolts, fasteners, and related parts that provide structural integrity, protection of internal components, and proper engine operation.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
