Cooling System / CFMOTO 500

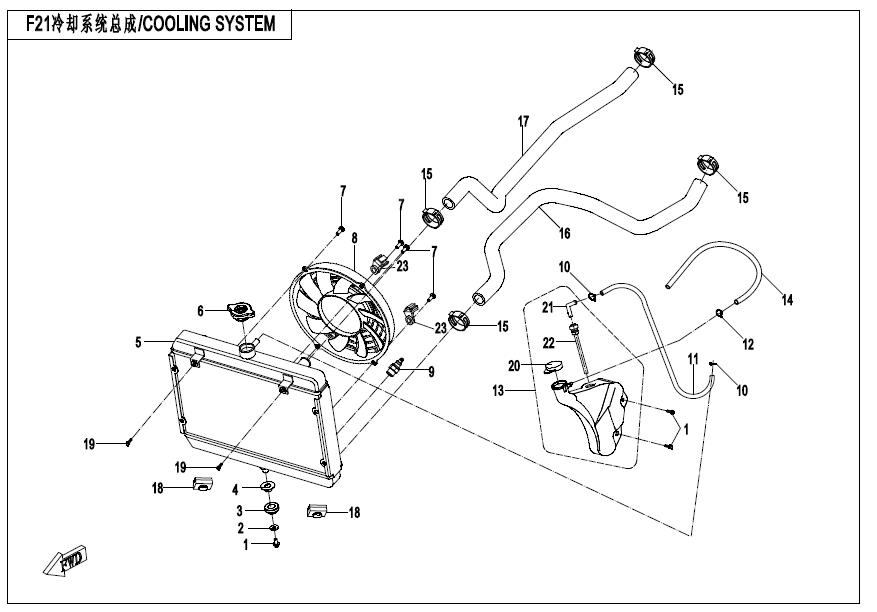

Cooling system diagram for CFMOTO 500 (2011–2016) includes all essential components for engine temperature regulation. The diagram shows radiator, fan, hoses, water pump, thermostat, mounts, fasteners, bolts, and related parts that ensure efficient cooling and optimal engine performance.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
