Air Filter / CFMOTO 500

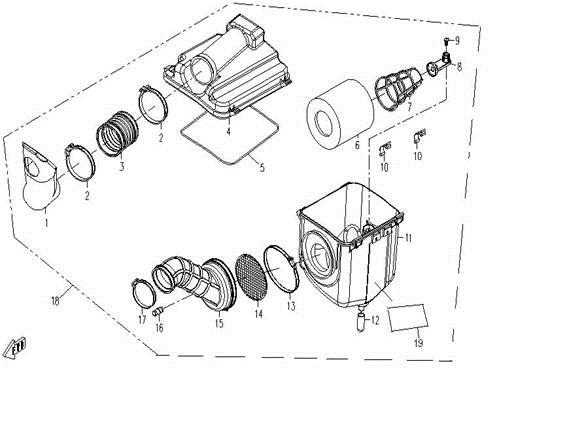

Air filter diagram for CFMOTO 500 (2011–2016) includes all essential components of the air intake system. The diagram shows filter housing, filter element, hoses, connectors, mounts, fasteners, bolts, and related parts that ensure clean airflow into the engine and optimal performance.

IMPORTANT! All parts in the image are labeled with numbers.

👉 Select the part number you need
👉 click "Send inquiry"
👉 write the part number in the message (e.g. #5)

Based on your request, we will provide:
✔ exact spare part
✔ price
✔ delivery time

💬 Fast response! We check availability and organize your order.
